Comprehensive Overview of VαⅢ Series All-Electric Injection Molding Machines

Table of Contents

Introduction to the VαⅢ Series All-Electric Injection Molding Machines
#

The VαⅢ Series represents a new generation of all-electric injection molding machines, engineered for precision, efficiency, and reliability. This article provides a structured overview of their core features, technical innovations, and available models, supporting a wide range of industrial applications.

Key Features and Innovations
#

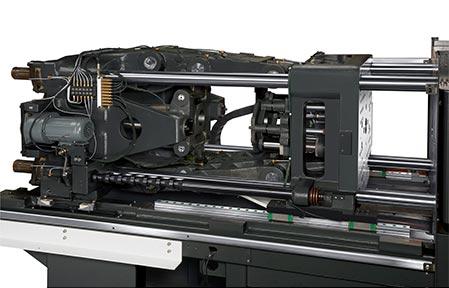

Clamping Unit
#

Robust, Fast-Cycle Molding: The high-rigidity clamping unit with a linear pressure toggle mechanism supports wider platens and ensures high-precision, stabilized molding.
Platen Support and Bushless Tie Bars: The movable platen is supported by linear guides, maintaining parallelism even with heavy molds. The absence of tie bar guide bushes reduces the need for grease.
Optimized Platen Structure: A square structure with concentrated crank force design minimizes platen distortion.

Injection Unit
#

Pivoting Injection Unit: Models from 130-250 tons offer manual rotation for easier maintenance without mold removal.
High Rigidity Structure: Integrated design and synchronized processing deliver high strength and precision.

Enhanced Clamping Performance
#

Extended Tie Bar Distances: Accommodates wider molds, with a center-pressed movable platen for uniform contact pressure and twist resistance.
5-Joint Internally Folding Toggle System: Utilizes advanced 3D simulation for a shorter ballscrew and reduced mold open/close time.

Structural and Operational Advantages
#

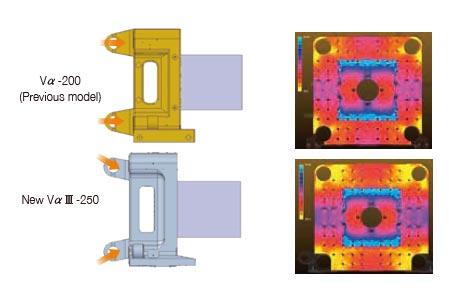

Centrally Pressed Platen: FEM-optimized rigid box design ensures minimal deflection and improved force distribution, reducing short shot and flash issues.
Tubular Steel Frame: Maximizes rigidity and supports multi-directional parts removal.

High-Speed, Precision Injection
#

Linear Guide Bearings: Enable smooth, reliable sled movement.
Japanese Load Cell: Delivers high-resolution results and precise pressure control for demanding applications.

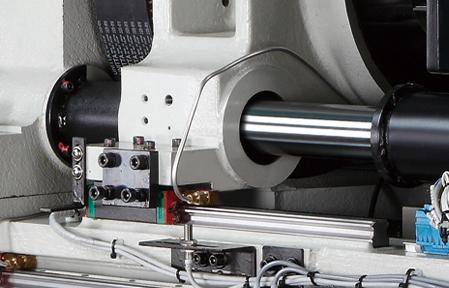

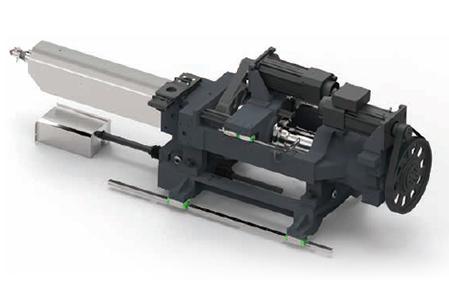

Optimized Linear Guides: Support quick acceleration and fast cycles, ideal for thin-wall molding.

High-speed Quick Response Injection Unit

User Interface and Control
#

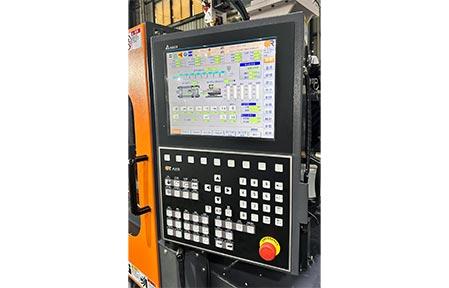

15-Inch Touch Screen: Swivel-mounted LCD with graphical interface, optimally positioned for operator convenience.
Simple Operation: Mold settings can be transferred via USB, with internal memory for up to 1000 molds.
Set Point Overview: Single screen for all key settings, improving setup efficiency.

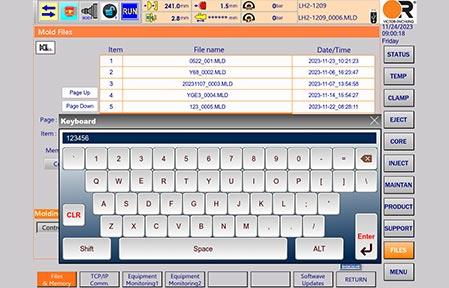

Pop-up Keyboards: User-friendly data and text entry.
Production Management: Quality control metrics and machine stop conditions can be set.

Additional Features
#

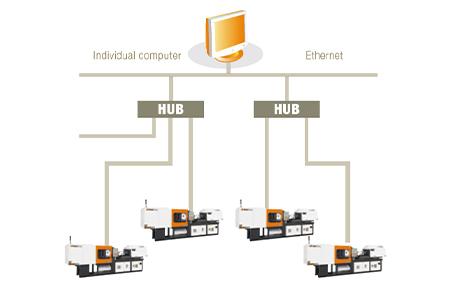

Remote Monitoring (PIS, Optional): Enables remote supervision of machine status and performance.

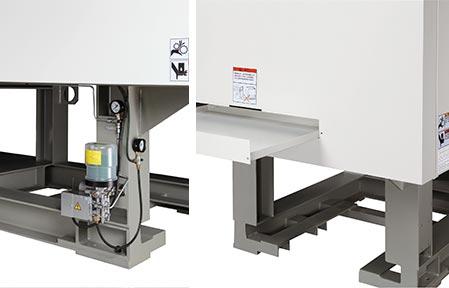

Quiet, Clean Operation: Centralized greasing system ensures proper lubrication and reduces noise.

Accessories
#

Standard Accessories:

Tool/fuse kit
Part drop chute
Standard 5-in/5-out water regulator (without flow indicator)
Anti-vibration leveling pads
220V/380VAC outlet for auto loader
Transformer for local power source

Optional Accessories:

Conveyor belt
Additional water regulator zones with flow indicator
110VAC/220V/380VAC outlet receptacles (various power sourcing options)

Product Models and Specifications
#

The VαⅢ Series is available in a range of models, each tailored to specific production needs. Key specifications include clamping force, tie-bar distance, and maximum injection capacity.

Model	Clamping Force (ton)	Max Injection Capacity (cm³)	Tie-bar Distance (mm)

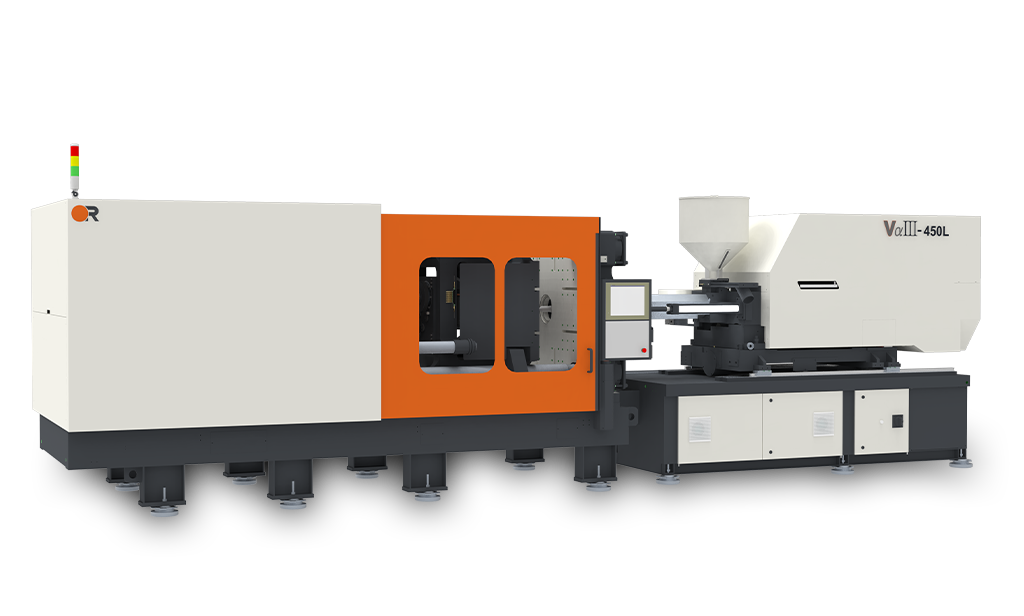

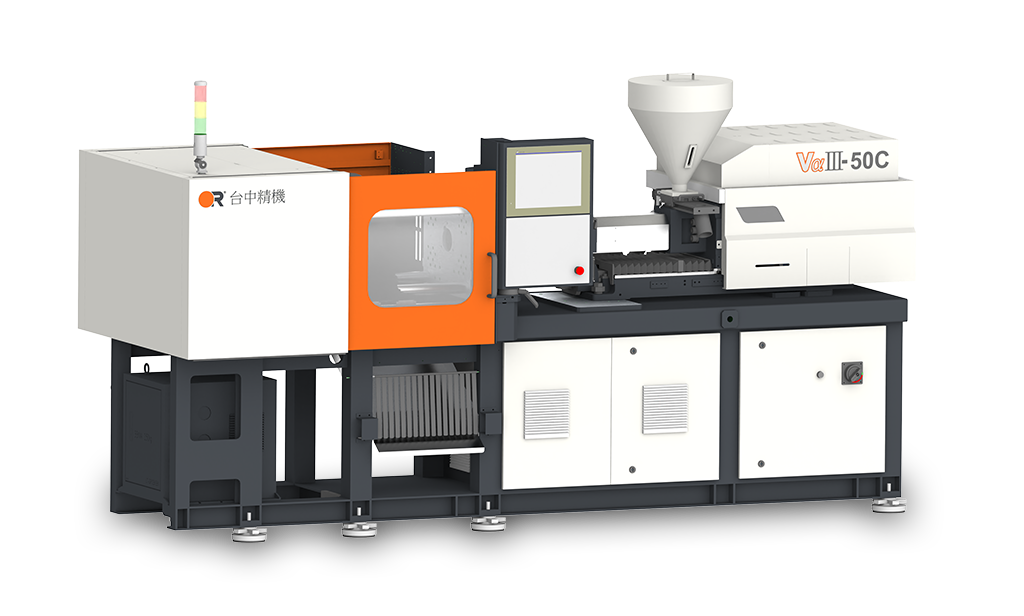

VαⅢ-50	50	80	360 x 310
VαⅢ-80	80	148	410 x 360
VαⅢ-100	100	148	460 x 410

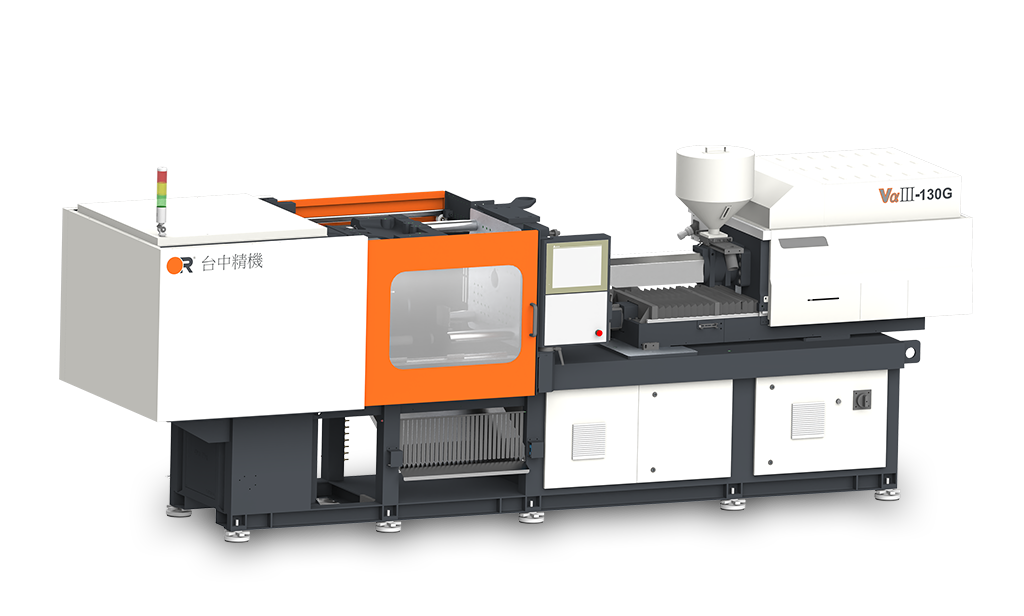

VαⅢ-130	130	266	510 x 460

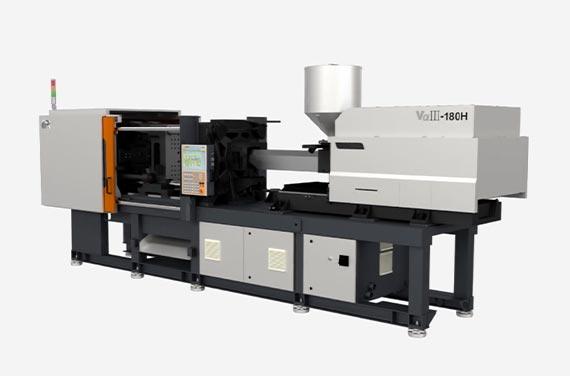

VαⅢ-180	180	475	560 x 510

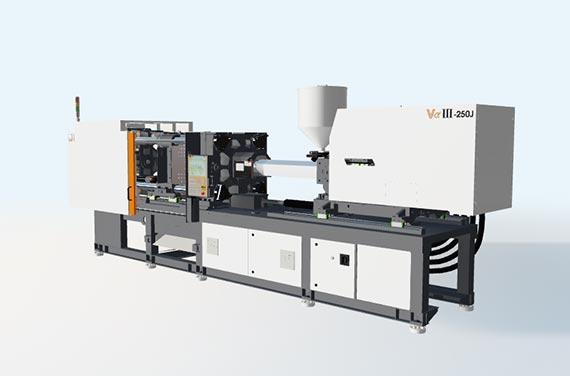

VαⅢ-250	250	701	610 x 560
VαⅢ-350	350	908	810 x 760
VαⅢ-450	450	1452	910 x 860
