Comprehensive Overview of Servo Hydraulic Injection Molding Machines

Servo Hydraulic Injection Molding Machines: Ve / VsP / VR Series

#

Victor Taichung offers a diverse range of servo hydraulic injection molding machines, designed to meet the needs of various industries and applications. The Ve, VsP, and VR Series provide options for different tonnages, tie-bar distances, and injection capacities, ensuring a tailored solution for your manufacturing requirements.

Product Series Overview

#

• Ve Series: General-purpose models, suitable for a wide range of applications, with clamping forces from 90 to 280 tons.
• VsP Series: High-response models, ideal for precision and speed, with clamping forces from 60 to 260 tons.
• VR Series: Medium to large models, designed for larger molds and higher output, with clamping forces from 350 to 1300 tons.

Key Specifications

#

• Clamping Force (ton): 60, 90, 110, 120, 140, 150, 180, 220, 260, 280, 350, 450, 550, 700, 850, 1000, 1300
• Tie-bar Distance (H×V) (mm): 310×310, 360×360, 410×410, 460×460, 505×505, 510×510, 560×560, 605×605, 615×615, 700×700, 780×780, 850×850, 960×960, 1100×1100, 1250×1100, 1320×1280
• Shot Weight (g/oz): Ranges from 36g (1.3oz) up to 4187g (147.4oz), depending on the model

Series and Model Highlights

#

Ve Series

#

• Ve-90: 110 ton, 181 cm³, 360×360 mm
• Ve-120: 140 ton, 222 cm³, 410×410 mm
• Ve-140: 140 ton, 326 cm³, 410×410 mm
• Ve-180A: 180 ton, 326 cm³, 460×460 mm
• Ve-180: 180 ton, 517 cm³, 460×460 mm
• Ve-220: 220 ton, 622 cm³, 505×505 mm
• Ve-280: 280 ton, 1039 cm³, 605×605 mm

VsP Series

#

• VsP-60: 60 ton, 101.8 cm³, 310×310 mm
• VsP-90: 90 ton, 182.2 cm³, 360×360 mm
• VsP-120: 120 ton, 182.6 cm³, 410×410 mm
• VsP-150: 150 ton, 265.9 cm³, 460×460 mm
• VsP-180: 180 ton, 475.2 cm³, 510×510 mm
• VsP-220: 220 ton, 475.2 cm³, 560×560 mm
• VsP-260: 260 ton, 871.6 cm³, 615×615 mm

VR Series

#

• VR-350: 350 ton, 1433 cm³, 700×700 mm
• VR-450: 450 ton, 2099 cm³, 780×780 mm
• VR-550: 550 ton, 3142 cm³, 850×850 mm
• VR-700: 700 ton, 3142 cm³, 960×960 mm
• VR-850: 850 ton, 4467 cm³, 1100×1000 mm
• VR-1000: 1000 ton, 6220 cm³, 1250×1100 mm
• VR-1300: 1300 ton, 7964 cm³, 1320×1280 mm

Product Images

#

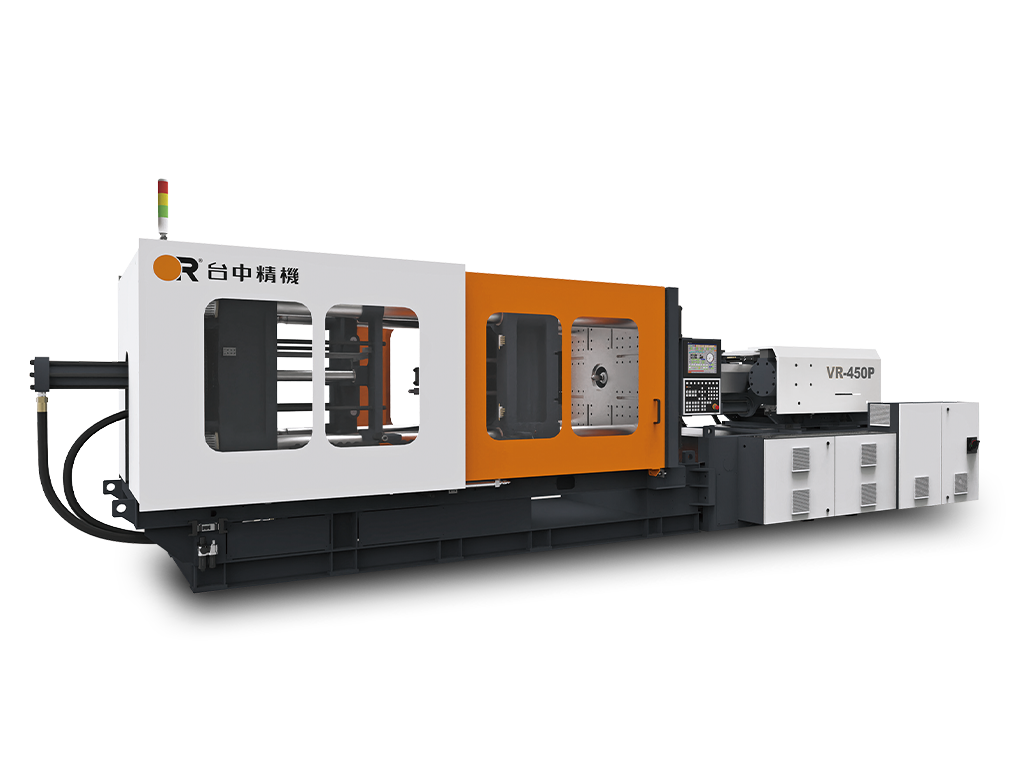

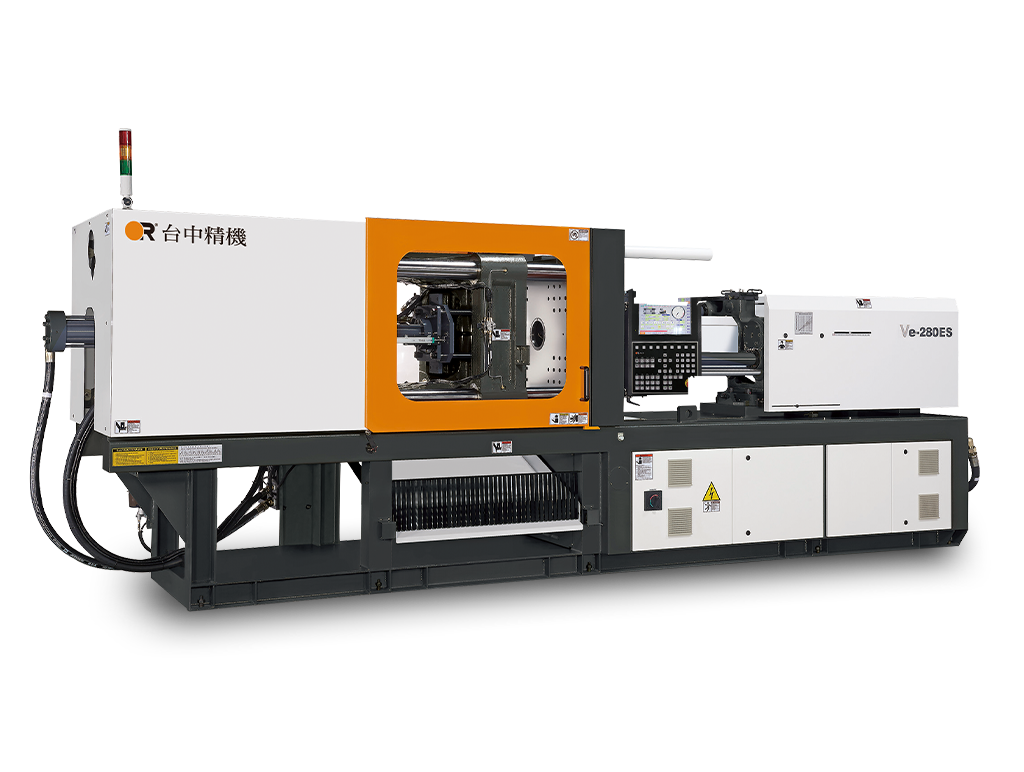

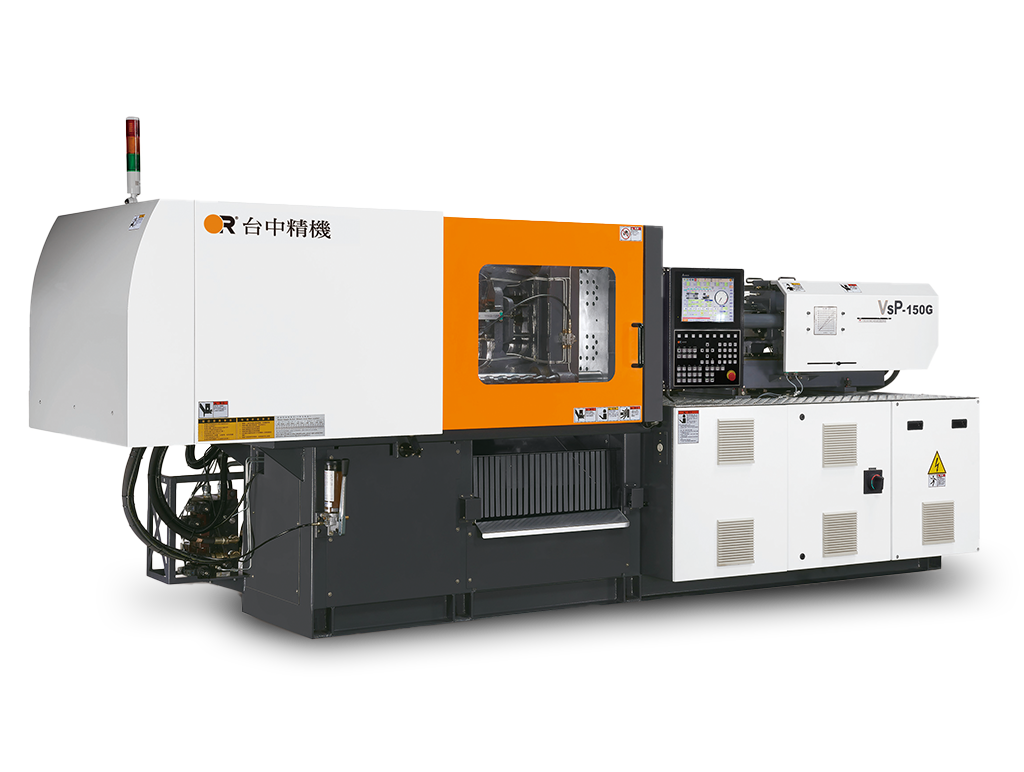

Ve Series General-purpose models VsP Series High-response models VR Series Medium to large models

Applications

#

Victor Taichung’s servo hydraulic injection molding machines are suitable for a wide range of industries, including:

• Precision Optics
• Precision Electronics
• Netcom Home Appliances
• Healthcare Industry
• Transportation Equipment
• Packaging Containers
• Sports and Leisure
• Home and Living

Additional Resources

#

• All-electric Injection Molding Machine
• Servo Hydraulic Double Shot Injection Molding Machine
• Technical Services
• Intelligent Machinery
• Maintenance Service
• E-catalog
• Video
• VR Showroom

For further details or to discuss your specific requirements, please contact us.
