Comprehensive Overview of Precision Injection Molding Machines

Table of Contents

Precision and Reliability in Injection Molding Solutions
#

Victor Taichung has established a strong reputation for delivering reliable, stable, and high-quality injection molding machines. Drawing on years of research and development, as well as extensive laboratory experience, the company integrates advanced components and innovative solutions to ensure precise and consistent performance, even in demanding environments.

Owning a Victor Taichung injection molding machine offers cost-effectiveness, user-friendly operation, and the ability to produce products that help you excel in the global market. To address diverse production requirements, a wide range of machine models is available, with customizable options based on tonnage, tie-bar distance, and injection volume.

Product Range and Selection
#

You can easily identify the most suitable machine for your needs by filtering according to key parameters:

Clamping Force (ton): 50, 60, 80, 90, 100, 110, 120, 130, 140, 150, 180, 220, 250, 260, 280, 350, 450, 550, 700, 850, 1000, 1300
Tie-bar Distance (H×V, mm): 310×310, 360×360, 410×410, 410×360, 460×410, 460×460, 505×502, 505×505, 510×510, 510×460, 560×510, 560×560, 605×605, 610×560, 615×615, 700×700, 780×780, 810×760, 850×850, 910×860, 960×960, 1100×1100, 1250×1100, 1320×1280, 720×410, 820×460, 920×510, 1020×560
Shot Weight (g/oz): Ranges from 32g (1.1oz) up to 4187g (147.4oz), with multiple increments for precise selection.

Machine Series Overview
#

All-Electric Injection Molding Machines (VαⅢ Series)
#

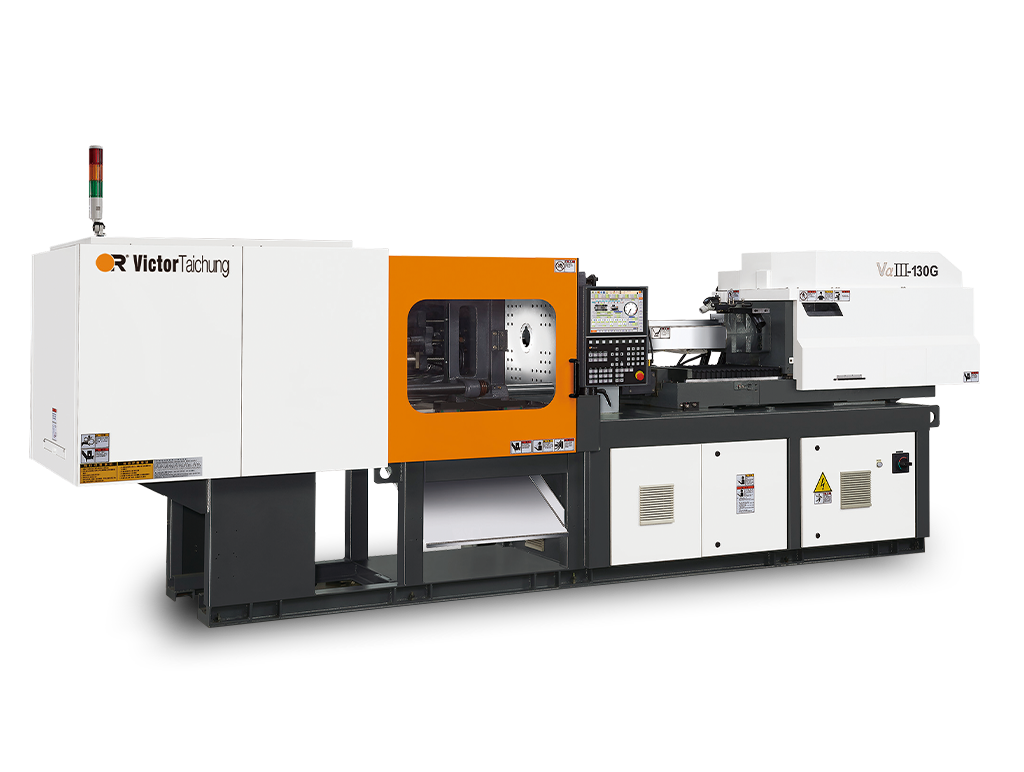

VαⅢ Series All-electric injection molding machine，50-450 ton

VαⅢ-50: Injection capacity 34–48 cm³, tie-bar distance 360×310 mm, clamping force 50 ton
VαⅢ-80: Injection capacity 62–80 cm³, tie-bar distance 410×360 mm, clamping force 80 ton
VαⅢ-100: Injection capacity 62–80 cm³, tie-bar distance 460×410 mm, clamping force 100 ton
VαⅢ-130: Injection capacity 117–148 cm³, tie-bar distance 510×460 mm, clamping force 130 ton
VαⅢ-180: Injection capacity 163–201–266 cm³, tie-bar distance 560×510 mm, clamping force 180 ton
VαⅢ-250: Injection capacity 332–393–475 cm³, tie-bar distance 610×560 mm, clamping force 250 ton
VαⅢ-350: Injection capacity 442–535–701 cm³, tie-bar distance 810×760 mm, clamping force 350 ton
VαⅢ-450: Injection capacity 594–707–908 cm³, tie-bar distance 910×860 mm, clamping force 450 ton

Servo Hydraulic Injection Molding Machines (Ve / VsP / VR Series)
#

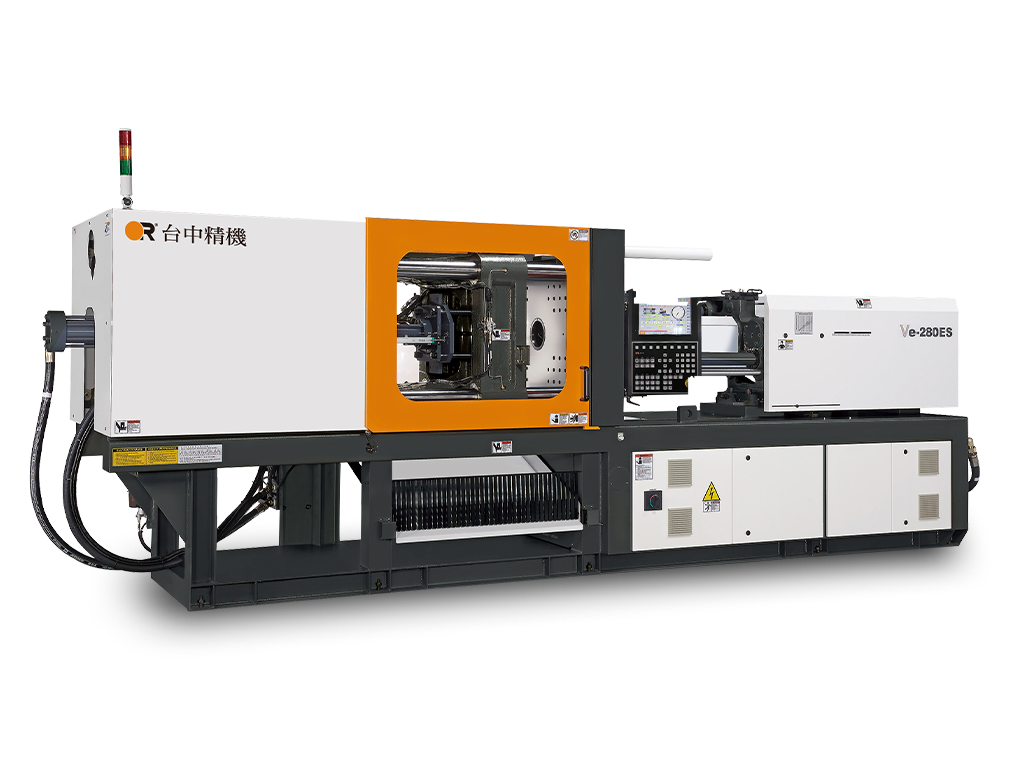

Ve / VsP / VR Series Servo hydraulic injection molding machine，60-1300 ton

Ve Series: Models from 110 to 280 ton, with injection capacities ranging from 113 cm³ up to 1039 cm³ and tie-bar distances from 360×360 mm to 605×605 mm.
VsP Series: Models from 60 to 260 ton, injection capacities from 38.0 cm³ up to 475.2 cm³, tie-bar distances from 310×310 mm to 615×615 mm.
VR Series: High-speed models from 350 to 1300 ton, injection capacities from 332 cm³ up to 4467 cm³, tie-bar distances from 700×700 mm to 1320×1280 mm.

Servo Hydraulic Double Shot Injection Molding Machines (RC Series)
#

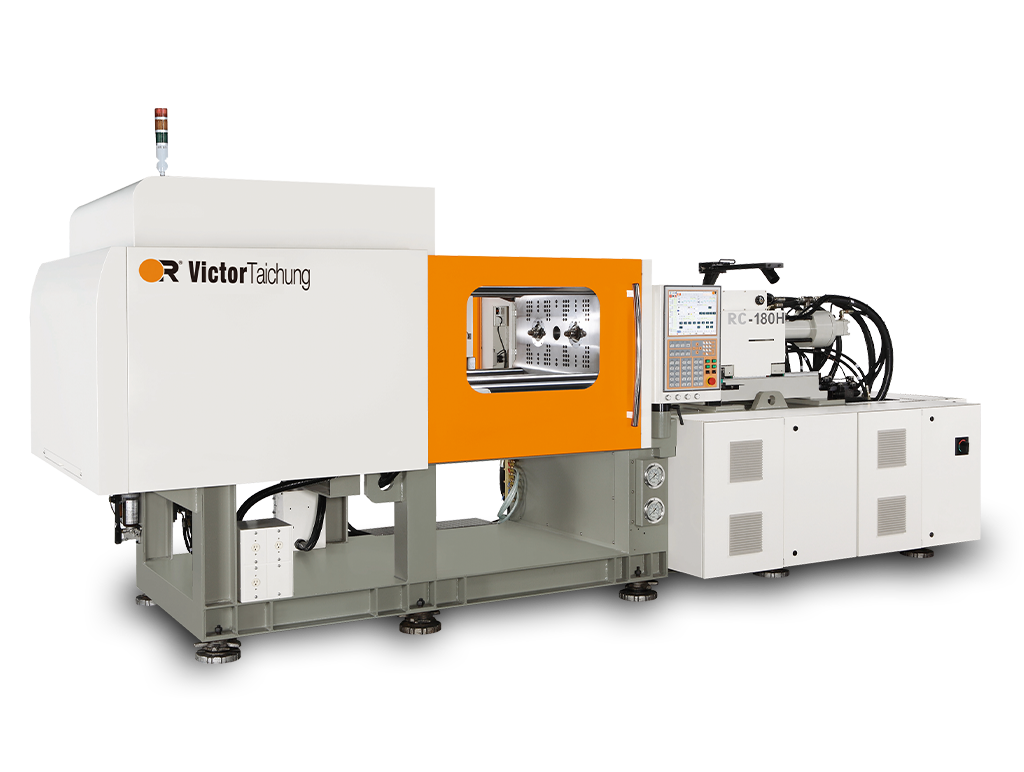

RC Series Servo hydraulic double shot injection molding machine，180-350 ton

RC-180: Injection capacity 14.1–19.8 cm³, tie-bar distance 720×410 mm, clamping force 180 ton
RC-220: Injection capacity 38–49.1 cm³, tie-bar distance 820×460 mm, clamping force 220 ton
RC-280: Injection capacity 86.2–143 cm³, tie-bar distance 920×510 mm, clamping force 280 ton
RC-350: Injection capacity 129–201 cm³, tie-bar distance 1020×560 mm, clamping force 350 ton
